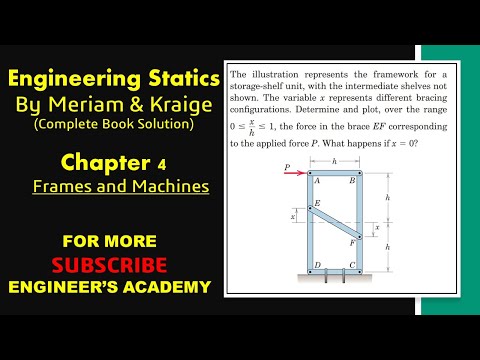

The illustration represents the framework for a storage-shelf unit, with the intermediate shelves not shown. The variable x represents different bracing configurations. Determine and plot, over the range 0 <x/h< 1, the force in the brace EF corresponding to the applied force P. What happens if x=0?
